PETROCHEMICAL EQUIPMENT

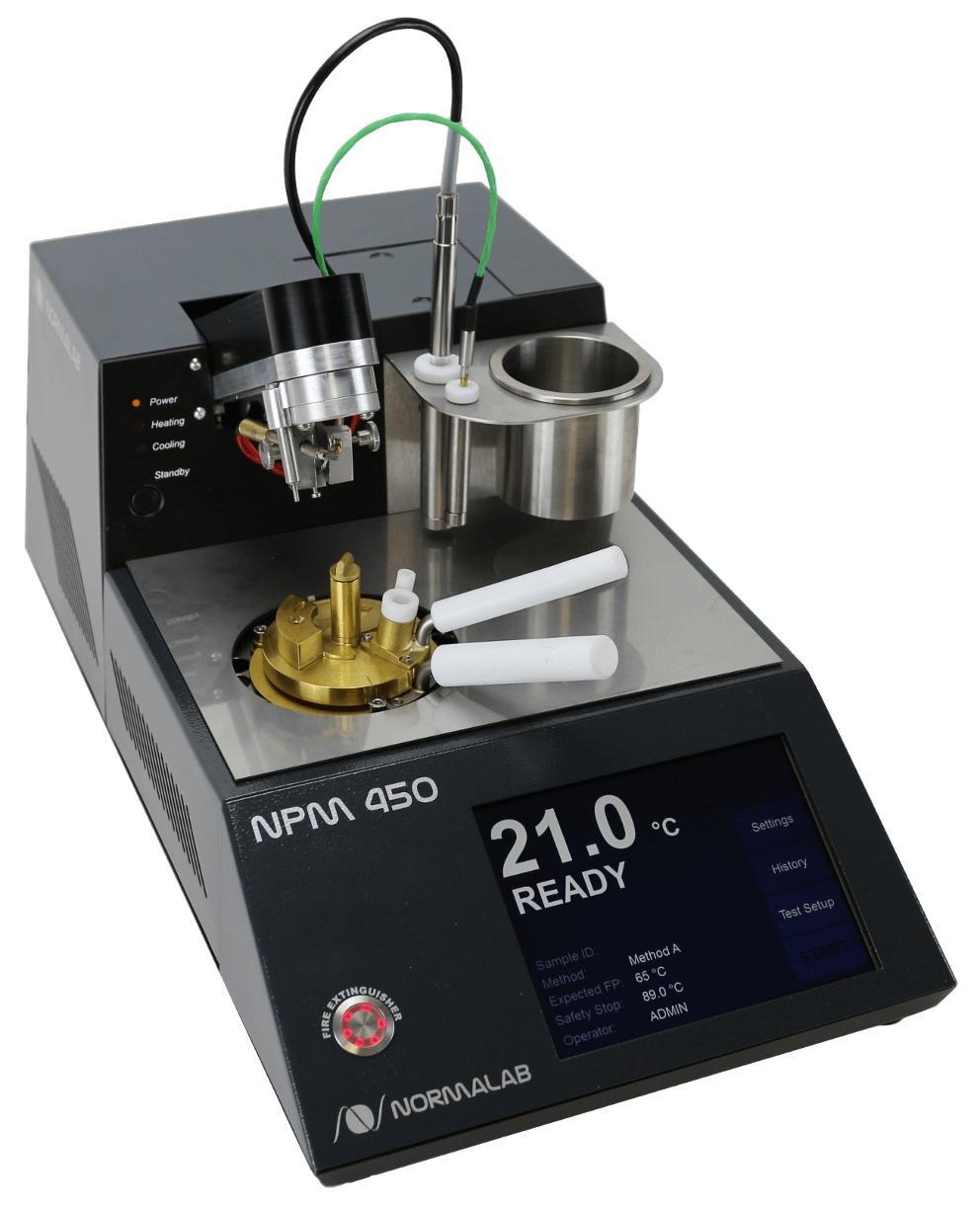

FLASH POINT BY PENSKY-MARTENS CLOSED CUP TESTER – AUTOMATED

Normalab

Normes : ASTM D 93, IP 34, ISO 2719

Efficient and compact, the NPM 450 is a fully automated Pensky-Martens Closed Cup Flash Point Tester with a combination of latest technologies. Due to the unique design, the NPM 450 offers you the best performance thanks to its predictive heating regulation and the air turbine enabling fast sample cooling after the test.

Thought for the user, the NPM 450 includes a revolutionary stirring and dipping arm, with an electric and gas ignition. A single combined system is delivered in standard. The user can automatically switch from gas to electric igniter (regulated automatically).

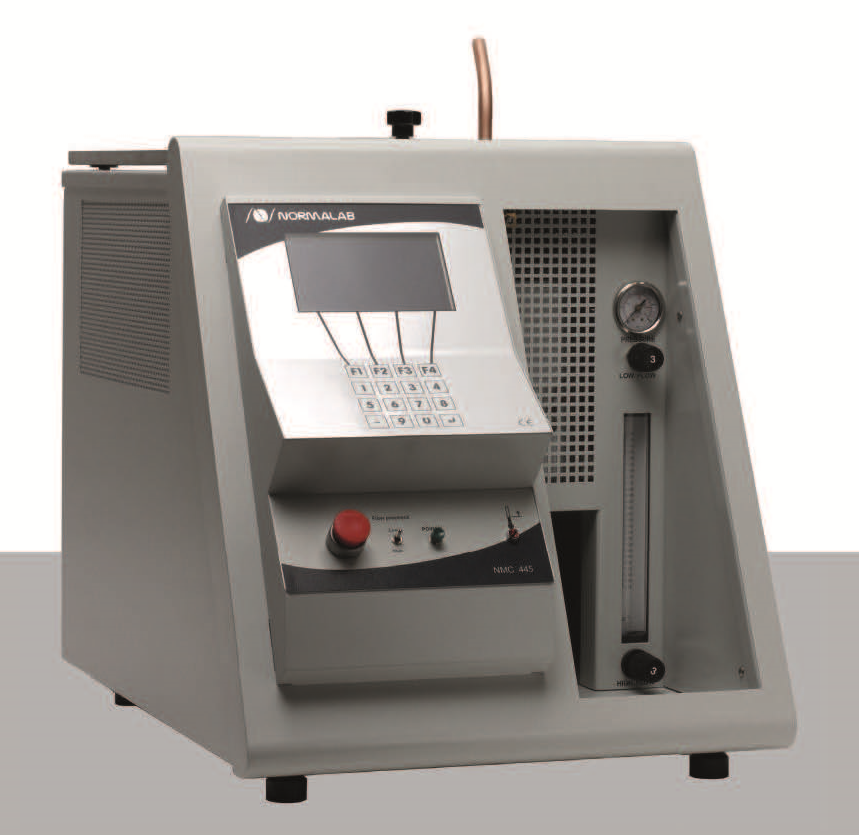

DETERMINATION OF CARBON RESIDUE (MICRO METHOD) & ASH

Normalab

Normes : ASTM D 189, ASTM D 4530, IP 398, ISO 10370

Fully automated, the NMC 445 provides all safety requirements for a simple measurement of carbon residue formed after evaporation and pyrolysis of petroleum products. Very easy to use, the NMC 445 gives the possibility to check the nitrogen flow on a front panel. Its software offers to create additional methods in addition to the 2 pre-set methods.

° Automatically controlled atmosphere

° Automatic calculation of % carbon residue or ash (required balance)

° Quick control of nitrogen flow rate on front panel

° 2 pre-set methods + 18 additional ones with 4 heating segments each

° Test reports including initial weight and results

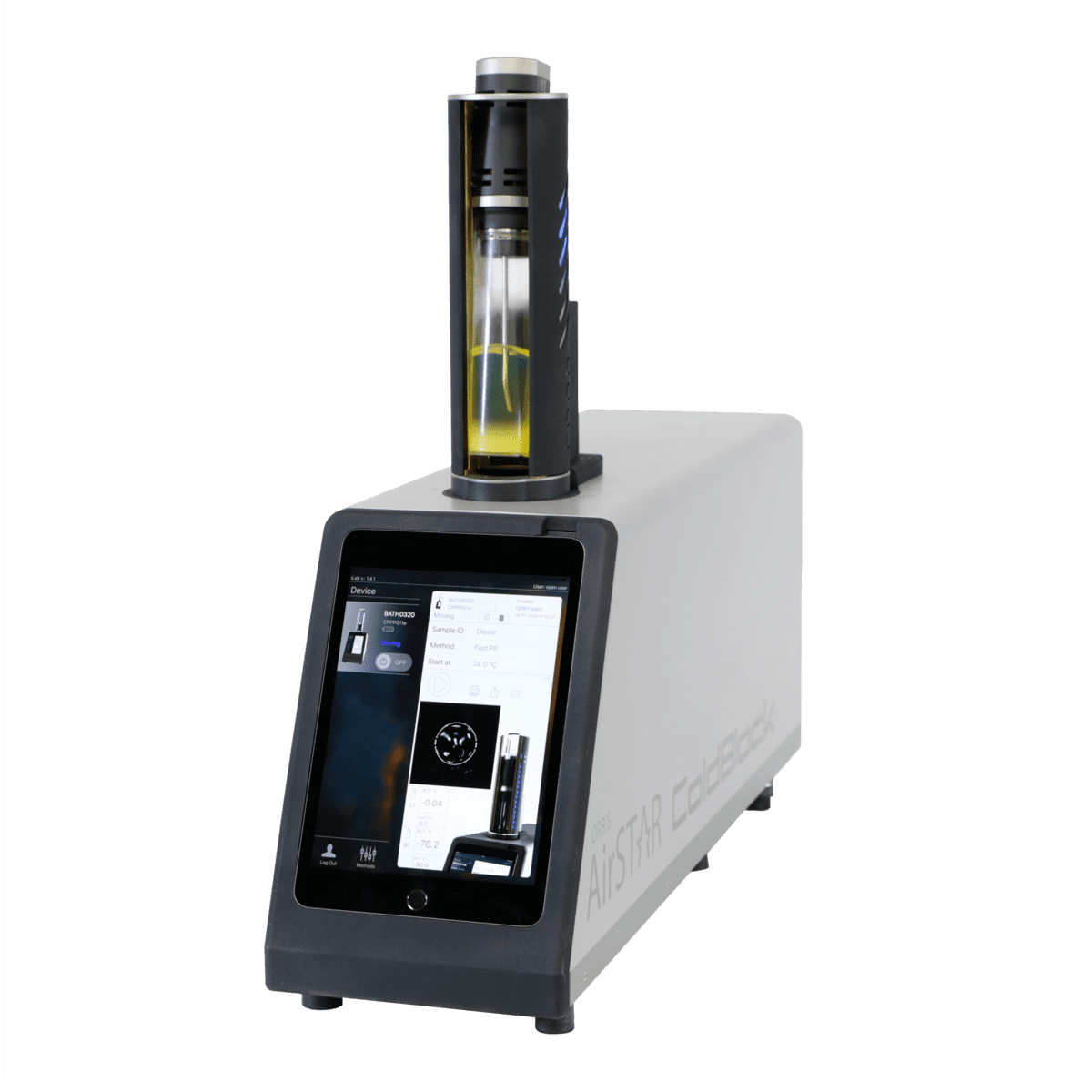

CLOUD & POUR POINT TESTING COLD FILTER PLUGGING POINT TESTING

Orbis BV

Fully automatic determination of Cloud Point, Pour Point and Cold Filter Plugging Point using the traditional test methods. The most well-known being ASTM D97 (Pour Point), ASTM D2500 (Cloud Point) and ASTM D6371 (Cold Filter Plugging Point).

It can be used as a dedicated CFPP “only” or Cloud / Pour Point “only” Tester. Or, conveniently, as a 3-in-1 solution, by simply swapping CFPP and CPPP Heads between tests.

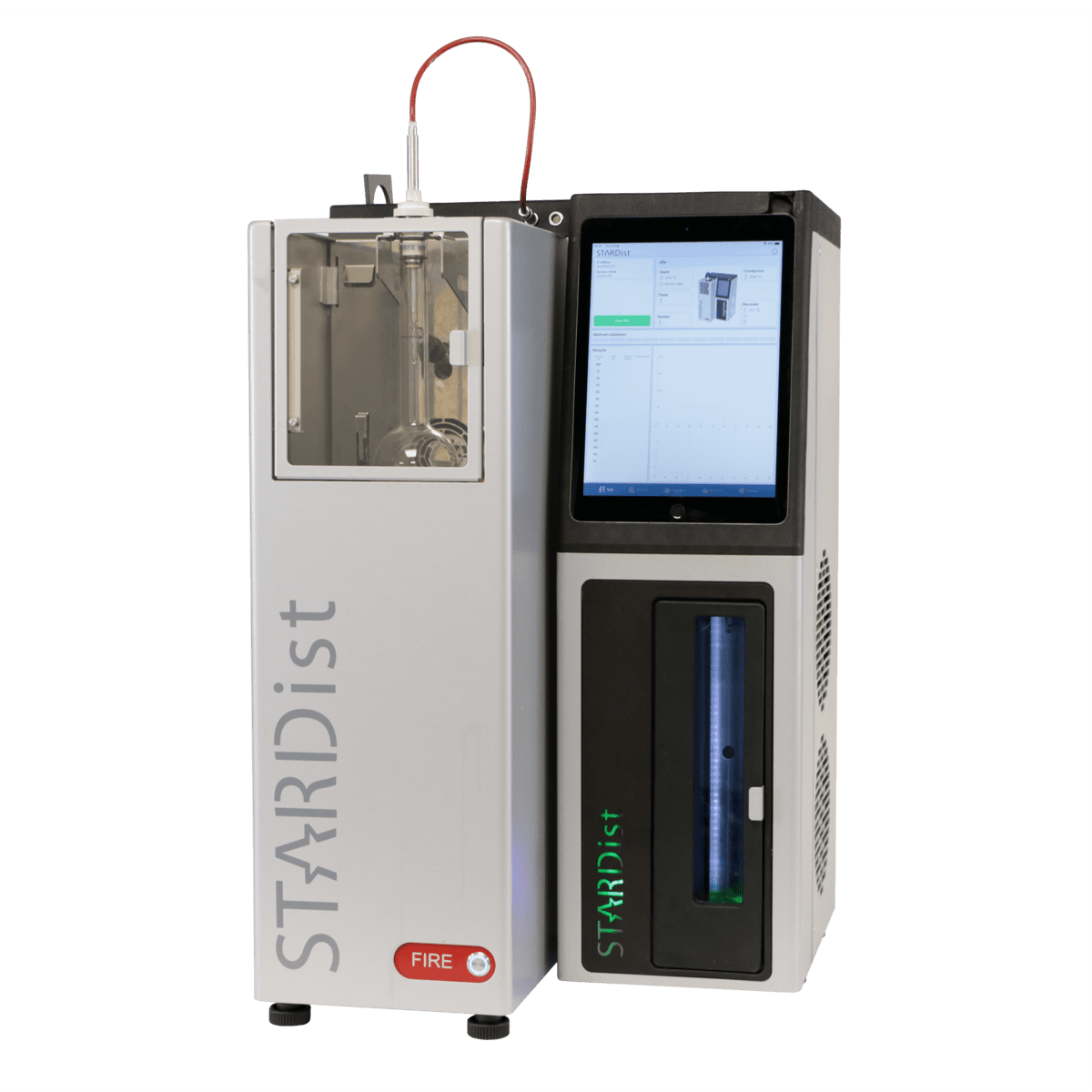

AUTOMATIC ATMOSPHERIC DISTILLATION

Orbis BV

Excellent performance in Automatic Distillation testing.

It includes unique features such as Optical Dry Point testing, PreScan and fast heater cooling. Weight: 40 kg Dimensions: 40 × 40 × 63 cm Sample type:Fuels, PetroChemicals Methods: ASTM D1078, ASTM D850, ASTM D86, DIN 51751, GOST 2177, IP 195, ISO 3405, JIS K2254
